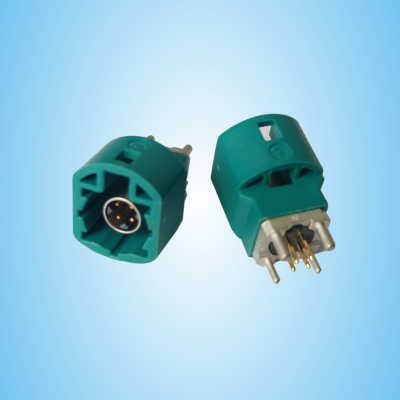

Specification
1. Impedance: 100 Ohm
2. Return loss: ≧20dB to 1GHz; ≧17dB to 2GHz
3. Insertion loss: ≦0.3dB to 2GHz
4. Skew: Straight type/ ≦5ps; Right angle type/ ≦25ps
5. Near end X’talk: ≦30dB(1GHz)
6. Far end X’talk: ≦35dB(1GHz)
7. Signal contact resistance: ≦10mOhm
8. Outer contact resistance: ≦7.5m Ohm
9. Working voltage: 100Vrms
10. Current rating: 2.5 A
11. Fire protection grade: UL 94-V0
Compliance
Product is strictly developed in accordance with national standard requirements to meet market versatility.
1. IDB 1394 Automotive Specification
2. USCAR 2, rev 5 Performance Specification for Automotive Electrical Connector Systems
3. LV214, Motor Vehicle Connectors Test Specification
4. USB 2.0/3.0, Universal Serial Bus Specification
5. RoHS Compliant
Feature
1. Applicable impedance: 100 Ohm
2. Data rate up to 1.6 GHz
3. Connector is designed for digital data transmission on a variety of protocols
Order information
Physical dimension
Key code option
